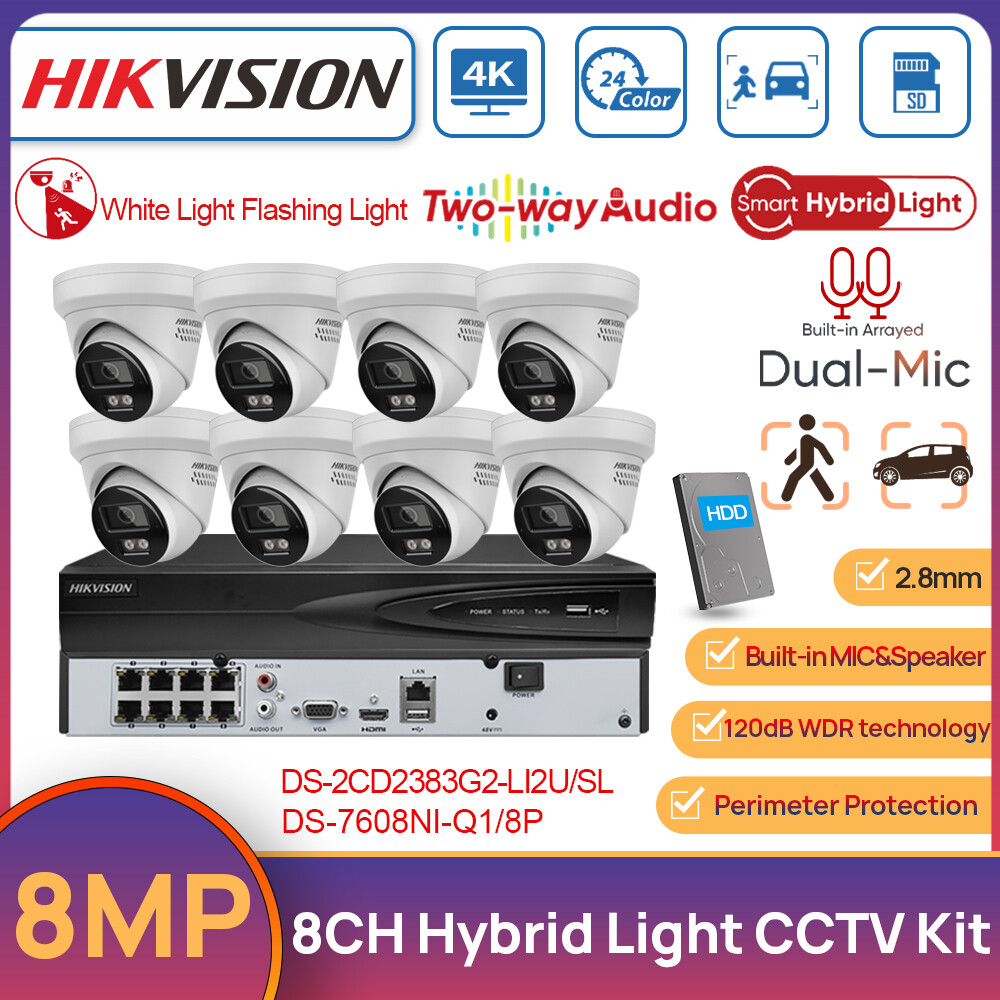

Hikvision 8CH POE NVR 8MP Hybrid Light CCTV Camera System 2Way Audio Light Alarm

GBP 369.00
Condition: New
Category: Electronics
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping
Hikvision 8CH POE NVR 8MP Hybrid Light CCTV Camera System 2Way Audio Light Alarm


>>> This camera is 100% Hikvision Original, support firmware upgrade.
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.

💥 Phone APP: Hik-connect
💥 PC Client: iVMS-4200
💥 Search Tool:SADP







DS-2CD2383G2-LI2U/SL 8 MP Acusense Strobe Light and Audible Warning & Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • AcuSense: Focus on person and vehicle classification based on deep learning
  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • Active strobe light and audio alarm to warn intruders off



DS-7608NI-Q1/8P Hikvision Original 8-ch 1U 8 PoE 4K NVR
  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth








  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°



  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°

    4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • Depth of Field

    2.8 mm: 1.7 m to ∞

    4 mm: 2.6 m to ∞



  • DORI
  • DORI

    2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

    4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m



  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm



  • Video
  • Main Stream

    50 Hz:

    20 fps (3840 × 2160)

    25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (3840 × 2160)

    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Target CroppingYes



  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes



  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Web Browser

    Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

    Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+



  • Image
  • Image Parameters SwitchYes
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask8 programmable polygon privacy masks



  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Built-in Speaker1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
  • AudioBuilt-in Microphone: Arrayed dual-microphone



  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,strobe light flashing



  • Deep Learning Function
  • Perimeter Protection

    Line crossing, intrusion

    Support alarm triggering by specified target types (human and vehicle)



  • General
  • Power

    12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3at, Class 4, max. 18 W

  • MaterialMetal
  • DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")
  • WeightApprox. 590 g (1.1 lb.)
  • With Package WeightApprox. 820 g (1.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Flashing Light

    SRB models: Red and Blue Light

    Other models: White Light



  • Approval
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety



    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013





  • Motion Detection 2.0
  • Human/Vehicle Analysis4-ch



  • Video and Audio
  • IP Video Input8-ch
  • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K(4096x2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)



  • Recording
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726



  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Decoding Capability

    1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

    *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

  • Synchronous playback8-ch
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF



  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface



  • PoE
  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 75 W



  • Auxiliary Interface
  • Alarm In/OutN/A (4/1 is optional)
  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0



  • General
  • Power Supply48 VDC, 1.88 A
  • Consumption≤ 10 W (without HDD and PoE off)
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)



  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017



1. All payments must be prepaid.
2. Please make sure that your Recipient Information includes your Phone Number. And please make sure the Address and Post Code is correct, if you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address.
3. Your patience for International Shipping Order will be highly appreciated.




1.We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback.
2.We greatly appreciate your POSITIVEFeedback. Please do NOT leave negative feedback without asking for help. If you have any question , you can send message to us , we will try our best effort to solve it
Package Included NVR+2PCS Cameras
HDD Capacity None
Model DS-7608NI-Q1/8P+DS-2CD2383G2-LI2U/SL
Maximum Resolution 3840*2160
3-Axis Yes
Image Enhancement BLC,3D DNR,WDR
Day/Night Switch Auto/Scheduled
Image Sensor 1/2.8" Progressive Scan CMOS
Firmware Firmware updatable
Resolution 8MP
Compatible Brand Hikvision
Smart Home Compatibility Hikvision
Location Indoor/Outdoor
Surveillance Technology IP/Network
Connectivity IP/Network - Wired
Type Cameras
Features Built-In Memory Storage, Power over Ethernet (PoE), Infrared & Night Vision, Built-in dual microphone, Hybrid Light, Acusense, 2-Way Audio, Arrayed dual-microphone, 4K, White Light Alarm, Strobe Light and Audible Warning
Smart Home Protocol Infrared
Operating Sound Rating 120 dB
MPN DS-2CD2383G2-LI2U, DS-2CD2383G2-LI2U/SRB, DS-2CD2383G2-LI2U/SL, DS-2CD2386G2-IU, DS-7608NI-Q1/8P
Storage Capacity 2TB, 4TB
Brand HIKVISION
Manufacturer Warranty 3 years
Lens 2.8 mm
IR Distance Up to 30m
Power PoE
Voltage 12 V
Colour White
Colour Mode Colour Day, B&W Night
Number Of Cameras Included 8
Number Of Channels 8
Items Included Camera, NVR, HDD
NVR Decoding Format H.265+,H.265,H.264+,H.264
NVR Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA
NVR Decoding Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
NVR Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
NVR POE Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
NVR SATA Capacity 1 SATA interface,Up to 8 TB capacity for each disk
NVR USB Interface 2 × USB 2.0
